新產品: M2M Mini PAC GD-4500系列


泓格科技自行研發生產的G-4500系列M2M (Machine to Machine)可程式控制器,在市場上已經廣受大家的好評與愛戴,被廣泛的應用於水文監控、智能電力、流量計回報系統和車載系統。現在更提供高性價比的塑膠外殼M2M PAC控制器GD-4500系列,GD-4500系列擁有不會鏽蝕與比較輕巧…等等的優點,可應用於一些特別需求的環境。

GD-4500系列特色為內建GPRS/GSM模組、Ethernet界面、GPS模組(選購)、3個數位輸入、3個數位輸出、8個類比輸入、2個RS-232與1個RS-485。傳統的應用上, 都必須採用主機(PC, PLC, PAC, HMI)搭配另外的GSM模組才能達到無線GSM/GPRS或GPS的應用系統,這將會造成許多整合上的困難,而GD-4500提供這些問題的解決方式,整合了M2M應用的硬體資源,更配合泓格獨特的即時作業系統miniOS7,可讓GD-4500的效能發揮到最大。

GD-4500 M2M通訊設備無論安裝在何處,仍然可以輕鬆傳送資料至控制中心,它提供更為優質的服務與用降低營運成本的方式來傳送M2M的資料。GD-4500搭配GPS模組的應用,即可變成GPS車輛追蹤系統。它可以被廣泛的應用在車輛管理系統或航海系統。在許多的應用實例中,使用GD-4500將會更有效率。


特色:
  • 嵌入式 MiniOS7, anti-virus
  • 支援多種的TCP/IP特性,包含 TCP, UDP, IP, ICMP, ARP
  • 10/100BASE-T NE2000 compatible 乙太網路控制器
  • COM port: COM1 (5-wire RS-232), COM2 (RS-485), COM3 (3-wire RS-232)
  • RS-485 port 內建 self-tuner ASIC controller
  • I/O: 3 個 DI, 3 個 DO, 8 個AI
  • 支援 MMC/SD storage card(More detail)
  • GPRS/GSM: 四頻 850/900/1800/1900 MHz
  • 支援GPRS的TCP server, TCP client, UDP client功能
  • GPS : 32 channels with All-In-View tracking (option)
  • 128*64 dots LCM 顯示器 (僅支援GD-4500D-2G和GD-4500PD-2G)
  • 支援Modbus通訊協定
  • 在惡劣的環境中具高可靠度
  • 免費易用的開發工具及範例程式

Item GD-4500-2G GD-4500D-2G GD-4500P-2G GD-4500PD-2G
CPU 80 MHz internal microprocessor
SRAM/Flash 512K/512K , real time clock, watchdog timer
NVRAM 31 bytes, battery backup, data valid up to 10 years
EEPROM 16 KB, retention > 40 years. 1,000,000 erase/write cycles
Comm. Interface
COM ports COM1:5-wire RS-232; COM2: RS-485; COM3:3-wire RS-232
Ethernet 10/100 Base-TX Ethernet controller
GSM Interface
Frequency Band Quad-band 850/900/1800/1900 MHz
GPRS connectivity GPRS class 10/8; GPRS station class B
DATA GPRS Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max 42.8kbps
SMS
SMS MT, MO, CB, Text and PDU mode
SMS storage SIM card
GPS Interface
Support Channels - 32
Sensitivity - Tracking = up to -159 dBm (with external LNA)
Cold start = up to -146 dBm (with external LNA)
Acquisition Time - Hot start (Open Sky) = 2 s(typical)
Cold start (Open Sky) = 36 s(typical)
Protocol Support - NMEA 0183 version 3.01
LCD Interface
General Effective display area - 80.61 mm x 14.37 mm (W x H) - 80.61 mm x 14.37 mm (W x H)
Module Dimension - 93 mm x 70 mm x 1.6 mm (W x H x T) - 93 mm x 70 mm x 1.6 mm (W x H x T)
Life Time - Expected life is more than 100,000 hours under normal operation - Expected life is more than 100,000 hours under normal operation
Digital Output
Output Channel 3
Output Type Open Collector (Sink/NPN)
Load Voltage +30 VDC max.
Load Current 100 mA max.
Isolated Voltage Non-isolated
Digital Input
Input Channel 3
Input Type Source(Dry Type), Common Ground
Off Voltage Level +1 V max.
On Voltage Level +3.5 ~ +30 V
Isolated Voltage Non-isolated
Analog Input
Input Channel 8
Resolution 12 - bit
Input Range/Type 0 ~ 20 mA
Sample Rate 1 KHz max. (Read one channel)

Power

Protection Power reverse polarity protection
Frame Ground Protection ESD, Surge, EFT, Hi-Pot
Power Requirement 15W; Unregulated +10 VDC ~ +30 VDC
Power Consumption Idle: 75 mA @ 24 VDC; Data Link: 150 ~ 400 mA (peak) @ 24 VDC
LED Indicators
System Red
GSM Yellow
GPS Green Yes
Mechanical
Casing Plastic
Dimensions 55 mm x 140 mm x 172 mm (W x L x H)
Installation DIN-Rall and wall mount
Environment
Operating Temperature -20 ~ +70 °C -15 ~ +55 °C -20 ~ +70 °C -15 ~ +55 °C
Storage Temperature -40 ~ +80 °C -20 ~ +70 °C -40 ~ +80 °C -20 ~ +70 °C
Humidity 5~90% RH, non-condensing

訂購資訊

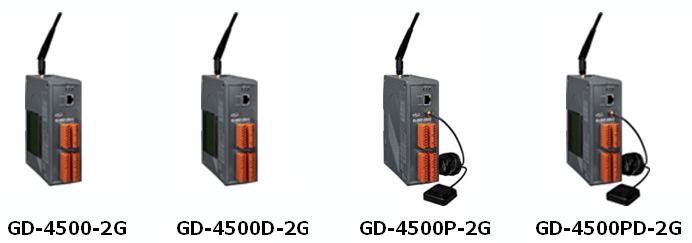

GD-4500-2G CR Quad-band M2M Mini-Programmable Automation Controller (RoHS)
GD-4500D-2G CR Quad-band M2M Mini-Programmable Automation Controller with LCD display (RoHS)
GD-4500P-2G CR Quad-band M2M Mini-Programmable Automation Controller with GPS function (RoHS)
GD-4500PD-2G CR Quad-band M2M Mini-Programmable Automation Controller with LCD display and GPS function (RoHS)

更多詳細的GD-4500-2G系列,請參考產品網站 : http://m2m.icpdas.com/gd-4500.html
