ICP DAS releases a new ISaGRAF ViewPAC “VP-4137” with main feature of 10.4” TFT LCD large touch screen.

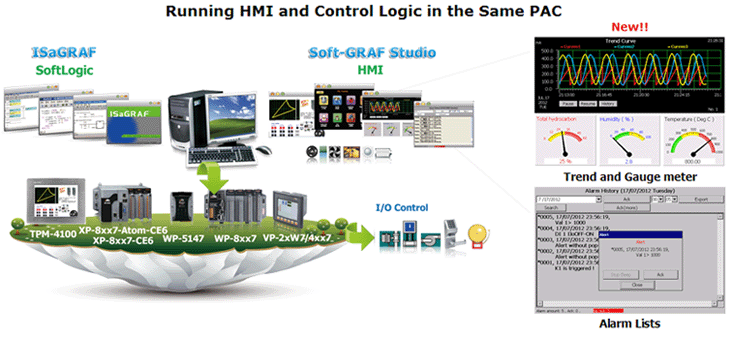

The ISaGRAF ViewPAC running the Windows CE.NET 5.0 embedded operating system, is built-in the ISaGRAF SoftLogic (IEC 61131-3 international standard PLC programming languages) and the Soft-GRAF HMI. The screen size of the original ViewPAC, VP-23W7/25W7, are 3.5” and 5.7” LCD. The new released model VP-4137 upgrades the size to 10.4” TFT LCD large touch screen, and increases the numbers of the USB ports (USB 1.1 Host x 2 and USB 1.1 Client x 1).

The large screen VP-4137, in addition to industrial applications, is also suitable for the commercial applications that combining of business, showcase, industrial… different needs, such as: home automation appliances, office building automation and community... monitor/control systems.

The VP-4137 is the new generation ISaGRAF based PAC of ICP DAS. ViewPAC integrates PAC, color graphic display with touch function into one unit. It is equipped with a PXA270 CPU (520 MHz), various connectivity (RS-232/485, Ethernet, USB), 3 I/O slots, 10.4” TFT Touch LCD. The benefits of running Windows CE 5.0 on ViewPAC include hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level and achievable deterministic control. ViewPAC is also capable of running ISaGRAF and PC-based control software such as Visual Basic .NET, Visual C#, …. etc.

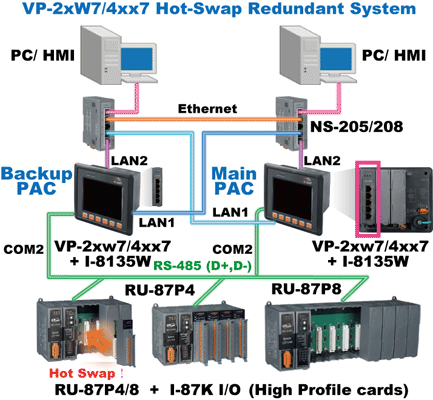

For other redundant system, please refer to Redundant Communication System .
