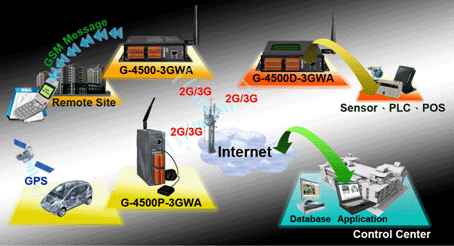

Item |
G-4500-3GWA |
G-4500D-3GWA |
G-4500P-3GWA |
G-4500PD-3GWA |
CPU |
80 MHz internal microprocessor |
SRAM/Flash |
512K/512K , real time clock, watchdog timer |
NVRAM |
31 bytes, battery backup, data valid up to 10 years |
EEPROM |
16 KB, retention > 40 years. 1,000,000 erase/write cycles |
Comm. Interface |
COM ports |
COM1:5-wire RS-232; COM2: RS-485; COM3:3-wire RS-232 |
Ethernet |
10/100 Base-TX Ethernet controller |
3G Interface |
Frequency Band |
WCDMA 2100/1900/850 MHz |
| Data Transmission |
WCDMA / HSDPA / HSUPA
Downlink transfer: Max. 7.2Mbps; Uplink transfer: Max 5.76Mbps |
| GSM Interface |
Frequency Band |
Quad-band 850/900/1800/1900 MHz |
GPRS connectivity |
GPRS class 12/10; GPRS station class B |
DATA GPRS |
Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max 42.8kbps |
SMS |
SMS |
MT, MO, CB, Text and PDU mode |
SMS storage |
SIM card |
GPS Interface |
Support Channels |
- |
32 |
Sensitivity |
- |
Tracking = up to -159 dBm (with external LNA)
Cold start = up to -146 dBm (with external LNA) |
Acquisition Time |
- |
Hot start (Open Sky) = 2 s(typical)
Cold start (Open Sky) = 36 s(typical) |
Protocol Support |
- |
NMEA 0183 version 3.01 |
LCD Interface |
General |
Effective display area |
- |
80.61 mm x 14.37 mm (W x H) |
- |
80.61 mm x 14.37 mm (W x H) |
Module Dimension |
- |
93 mm x 70 mm x 1.6 mm (W x H x T) |
- |
93 mm x 70 mm x 1.6 mm (W x H x T) |
Life Time |
- |
Expected life is more than 100,000 hours under normal operation |
- |
Expected life is more than 100,000 hours under normal operation |
Digital Output |
Output Channel |
3 |
Output Type |
Open Collector (Sink/NPN) |
Load Voltage |
+30 VDC max. |
Load Current |
100 mA max. |
Isolated Voltage |
Non-isolated |
| Digital Input |
Input Channel |
3 |
Input Type |
Source(Dry Type), Common Ground |
Off Voltage Level |
+1 V max. |
On Voltage Level |
+3.5 ~ +30 V |
Isolated Voltage |
Non-isolated |
Analog Input |
Input Channel |
8 |
Resolution |
12 - bit |
Input Range/Type |
0 ~ 20 mA |
Sample Rate |
1 KHz max. (Read one channel) |
Power |
Protection |
Power reverse polarity protection |
Frame Ground Protection |
ESD, Surge, EFT, Hi-Pot |
Power Requirement |
15W; Unregulated +10 VDC ~ +30 VDC |
Power Consumption |
Idle: 75 mA @ 24 VDC; Data Link: 150 ~ 400 mA (peak) @ 24 VDC |
LED Indicators |
System |
Red |
3G/GSM |
Yellow |
GPS |
Green |
Yes |
Mechanical |
Casing |
Metal |
Dimensions |
47 mm x 142 mm x 168 mm (W x L x H) |
Installation |
DIN-Rall and wall mount |
Environment |
Operating Temperature |
-20 ~ +70 °C |
-15 ~ +55 °C |
-20 ~ +70 °C |
-15 ~ +55 °C |
Storage Temperature |
-40 ~ +80 °C |
-20 ~ +70 °C |
-40 ~ +80 °C |
-20 ~ +70 °C |
Humidity |
5~90% RH, non-condensing |
