Sparrow IMS-30 / IMS-130

Sparrow IMS-130
IEEE 1394b Color/Monochrome digital industrial camera
Vision Glossary Vision Glossary Vision Glossary Vision Glossary

English

Sparrow; a new IEEE 1394 camera product line of ICP DAS--designed for industrial machine vision applications. Sparrow IMS series are designed within high sensitivity industrial CCD sensor and be able to acquire color image or monochrome image. The IMS-130 offers 1288 x 964 resolutions and acquisition speed up to 31 frames per second.

Sparrow series also offers industrial digital I/O and screw locked 1394b connector interface designed. Compact housing with industrial level design can be adopted into all kind of inspection system such as inspection by robot arms. Sparrow IMS series image applications can be implement on industry environments such as semiconductor, electric component, high-speed assembly and manufacture quality control.



  • Progressive-scan for on-the-fly Applications
  • VGA to Up 1.3 Mega-pixel High Resolution
  • Small and Exquisite Compact Industrial Housing Design
  • Built-in 32 MB Memory Buffer
  • 64 KB Data Flash and AES Project Encryption
  • Robust External Trigger I/O Interface Supported
  • Free SDK API for VC, VB, BCB and C#.Net 2003
  • Supports Windows 2000/XP Driver

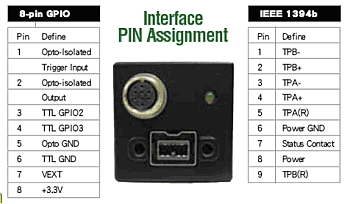

Interface PIN Assignment

AOI (Area of Interest) Image Acquisition
The AOI (Area of Interest) function allows users to select an area of interest, for the camera’s CCD array to specifically read, display, and transmit. The AOI function will enhance the acquisition speed and saving the image processing time.

  • Color mode AOI image acquisition

    Color mode AOI image acquisition
  • Monochrome mode AOI image acquisition

    Monochrome mode AOI image acquisition

AES Project Encryption

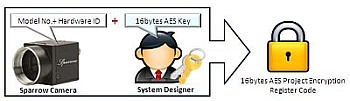

Sparrow IMS series camera offers an AES project encryption function. The system designer can use this function to generated unique security key to protected the copy right of their system.


64 KB Data Flash Memory
  64k Data Flash
Sparrow series has offers 64K bytes Data Flash memory for customer to save the camera configuration settings or the system application program running check information.

Top

Model No. IMS-130
Sensor Size 1/3” Sony CCD
Pixel Size 3.75 um x 3.75 um
Resolution 1288 x 964
Max. Frame Rate
at 1394b S800
Mono mode up to 31 fps
Color mode up to 16 fps
A/D Converter 12-bit Analog to Digital converter
Image Data Format Mono 8-bit, Mono 16-bit, RGB 24-bit
Data Flash 64 KB
Interfaces 9-pin IEEE 1394b for camera control and video data transmission,
8-pin Hirose for four general purpose digital input and output supported
I/O Opto-isolated Trigger Input x 1, Opto-isolated Output x 1
Bi-directional TTL GPIO x 2
Power Consumption 2.5 W, max at 12 V
S/N Ratio 59 dB
Dimensions 29 x 29 x 30 mm (without Lens)
Mass 58 g (without Lens)
Lens Mount C-Mount
1394 Compliance IIDC 1394 based digital camera specification V1.31
Operating Temperature 0 ~ 45 °C
Storage Temperature -30 ~ 60 °C
Operating Humidity 20 ~ 80 % RH (no condensation)
Storage Humidity 20 ~ 95 % RH (no condensation)
Certificated CE, FCC



IMS-130 1/3” CCD (1288 x 964) 1394b Color/Monochrome digital industrial camera



Model No. Picture Description

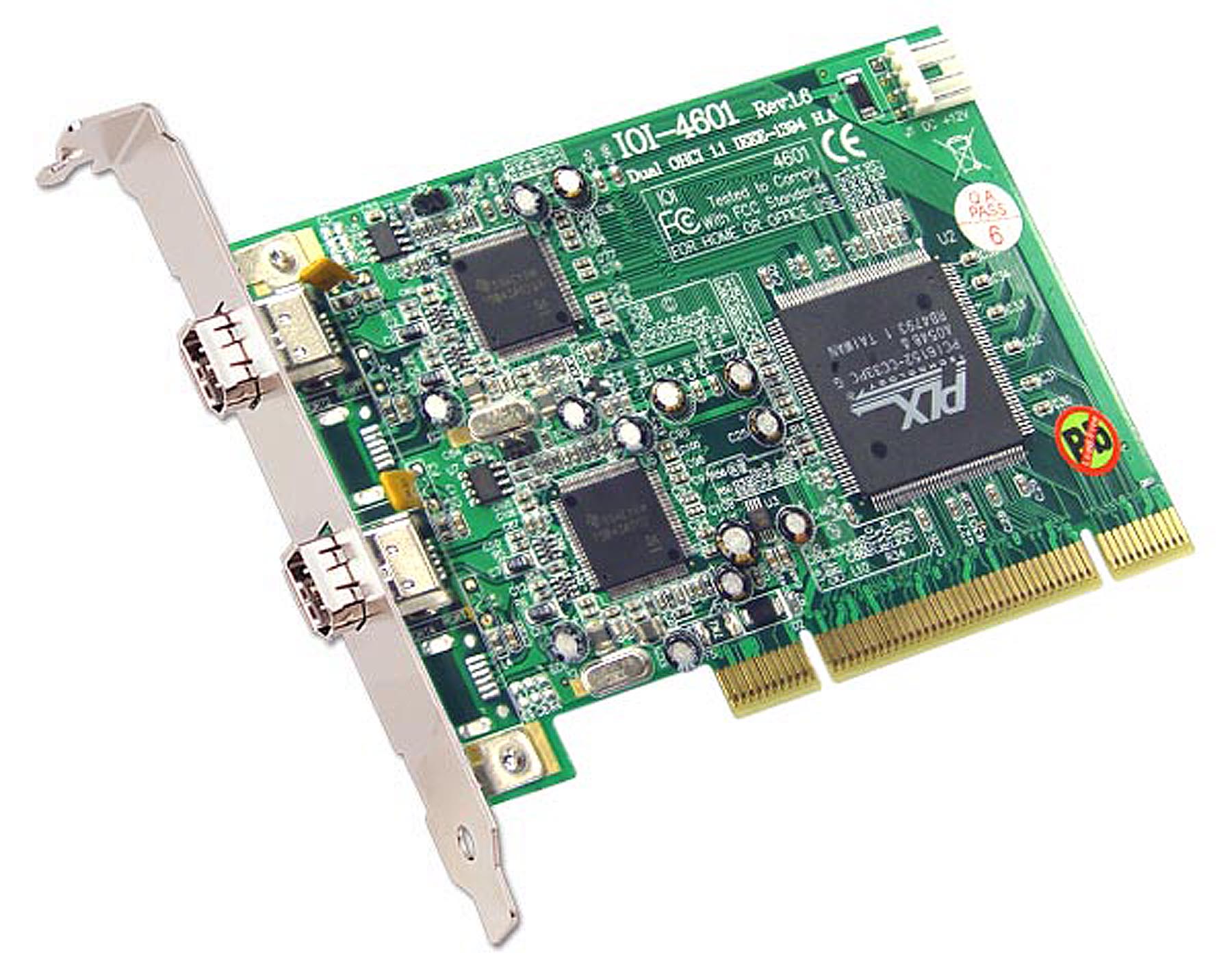

IOI-4601-21 IOI-4604-21 IEEE 1394a Dual port interface card

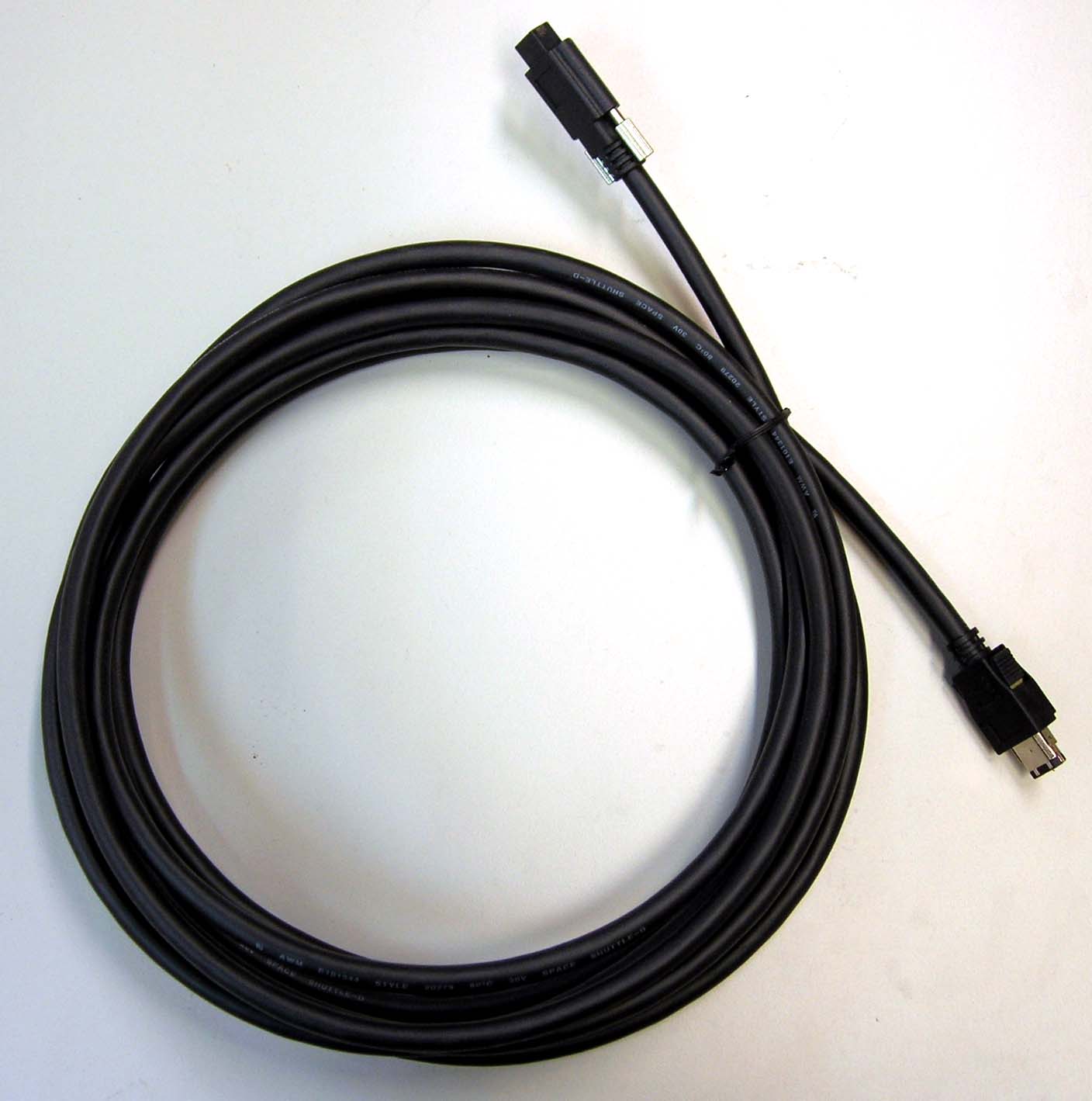

CA-1394AB-45 CA-1394AB-45 1394a to1394b high-flex bilingual 4.5 M cable

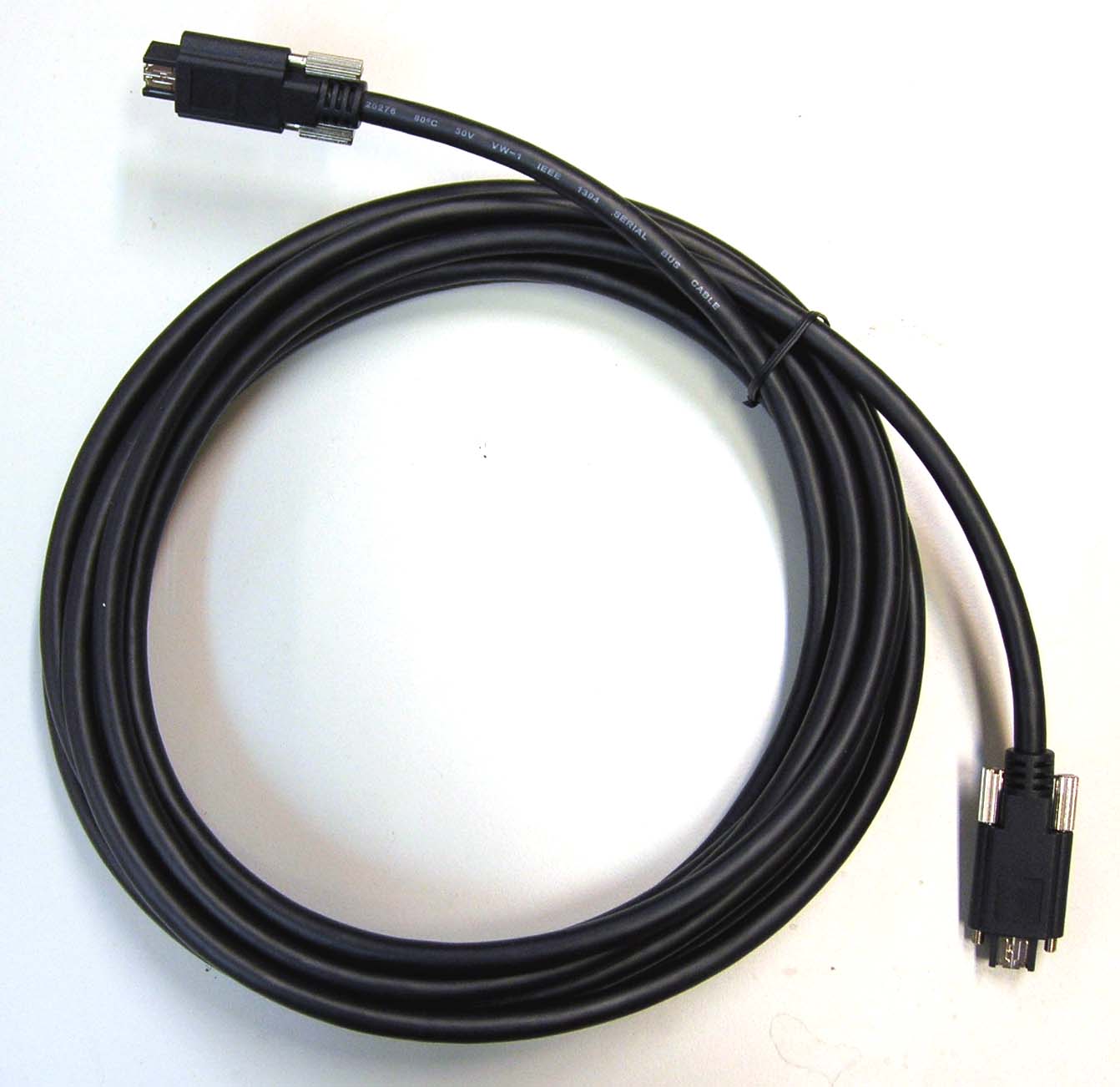

CA-1394B-45 CA-1394B-45 1394b high-flex 4.5 M cable
