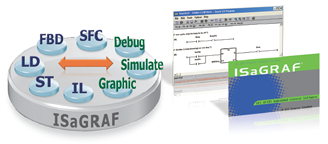

ISaGRAF is the most powerful SoftLogic package on the market. ISaGRAF is a PLC-like software running on Windows 95/98/NT/ |
|
| |
2000/XP. It supports IEC 61131-3 standard PLC programming languages - Quick Ladder (LD), Function Block Diagram (FBD), |
|
| |
Sequential Function Chart (SFC), Structured Text (ST), Instruction List (IL) plus Flow Chart (FC) and the program can run the |
|
| |
application generated by the workbench on any ISaGRAF PACs. Additionally, for the ultimate in power and flexibility, ISaGRAF |
|
| |

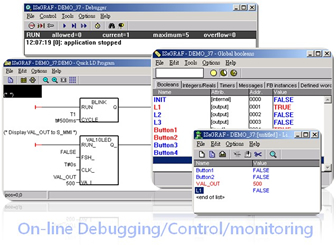

supports off-line simulation, on-line debugging, monitoring and control. (More...). |
|
| |
|
|
| |
Wanna see an ISaGRAF Presentation (9MB)? |
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
| |

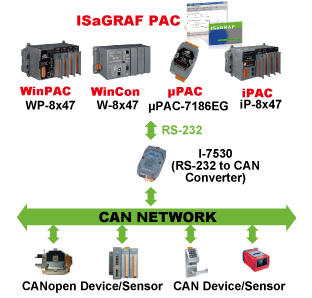

 Integrate with CAN/CANopen Devices and Sensors |
|
| |
 WP-8x47, W-8x47 Supports max. 10 I-7530 (RS-232 to CAN) Converters |
|
| |
iP-8x47, £gPAC-7186EG Supports max. 3 I-7530 (RS-232 to CAN) Converters |
|
| |
Please click www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) - 086 for more information |
|
| |
|
|
| |
 |
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |

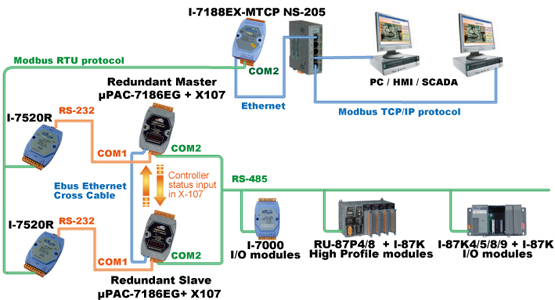

A Cost Effective and Hot-Swap Redundancy System |
|
| |
Please click www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) - 084 for more information |
|
| |
|
|
| |
 |
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |

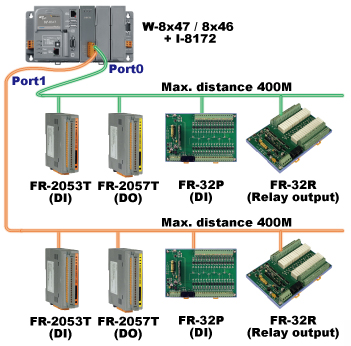

An Easy Way to Program the Fast FRnet Remote I/O Modules |
|
| |
Fast I/O scan: About 3 ms per FRnet scan. (This depends on your ISaGRAF PLC program's scan time, if the ISaGRAF PLC scan
time is 9ms, then the scan time for all will be 8 ms, not 3 ms.) |
|
| |
Please click www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) - 082 for more information |
|
| |
|
|
| |
 |
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |

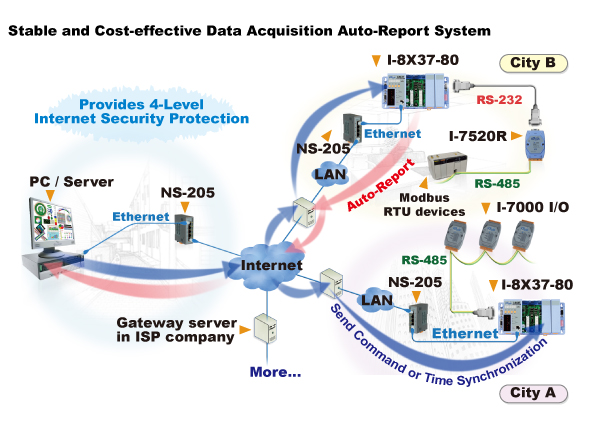

Data Acquisition Auto-Report System |
|
| |
VC++ 6.0, VB 6.0 and ISaGRAF demo program are available. |
|
| |
ISaGRAF PACs can use UDP Client protocol to auto-report acquisition data & control data to local or to remote internet PC/Server. |
|
| |
|
|
| |
Advantage: Each PAC in the different location doesn”¦t need a fixed Internet IP. |
|
| |
Please click www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) - 065 for more information. |
|
| |
|
|
| |
 |
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
How to modify the IP, NET-ID and Modbus RTU Slave port setting of the W-8347/8747 by an USB pen drive
(without Mouse and VGA) ? |
|
| |
ISaGRAF version 3.4 & 3.5 Now Supporting "Variable Array" !!! |
|
| |
How to use WinCon connecting to Ethernet I/O ? |
|
| |
(The I/O scan rate is about 30 to 40m sec for 3000 to 6000 I/O channels) |
|
| |
Connecting PC/HMI to a Redundancy System : Click FAQ-041 & FAQ-036 |
|
| |
W-8xx7/8xx6 can automatically report data to PC/InduSoft or PC/HMI |
|
| |
Setting £gPAC-7186EG”¦s and I-7188EG/XG 's COM3 or COM2 as Modbus RTU Slave port |
|
| |
How to connect an ISaGRAF PAC to M-7000 Remote I/O ? |
|
| |
WinCon-8xx7/8xx6 can setup up to five Modbus RTU Slave ports. |
|
| |
W-8xx7/8xx6 supports max 10 Modbus RTU/ASCII Master ports. |
|
| |
|
|
|
|
|
| |
back |
|
| |
Download specifications in PDF format |
|
| |
English |
ISaGRAF embedded PACs: I-8xx7, I-7188EG/XG, W-8x47, £gPAC-7186EG, iP-8x47, WP-8x47 |
Chinese |
ISaGRAF embedded PACs: I-8xx7, I-7188EG/XG, W-8x47, £gPAC-7186EG, iP-8x47, WP-8x47 |
|
|
| |
|
|
| |
|
|
|
|
|
| |
The ISaGRAF application can be easily applied to the I-8xx7 , I-7188EG/XG , £gPAC-7186EG, WinCon-8x47, iPAC-8x47 and the WP-8x47 PACs. When adding ISaGRAF programming, there are three distinct advantages: |
|
| |
|
|
| |
- Support all 5 of the PLC languages: Ladder Diagram (LD), Function Block Diagram (FBD). Sequential Function Chart (SFC), Structured Text (ST), and Instruction List (IL) + Flow Chart (FC).
|
|
| |
- The powerful communication ability
 for "Performance Comparison Table of ISaGRAF PACs"
|
|
| |
- Integration with HMI software and MMI become easy and powerful when using the Modbus protocol
|
|
| |
|
|
| |

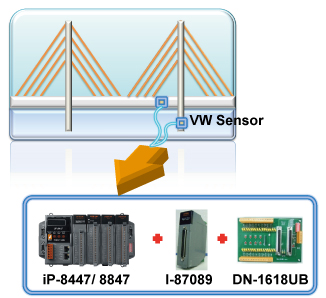

 Constructions Monitoring Application |
|
| |
ICP DAS release effective VW sensor solution (Vibration Wire solution). It”¦s useful for measuing the stress of constructions like
building, bridge, dam, etc.... |
|
| |
This solution has been successfully applied in some water dams monitoring system near the city Wuhang in China. |
|
| |
Please click www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) - 091 for more information. |
|
| |
|
|
| |
 |
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
Modbus RTU/TCP Slave Ports |
|
| |
Modbus RTU (RS-232/485/422): max. 5 PC/HMI/SCADA connection |
|
| |
iP-8x47, £gPAC-7186EG, I-8x17, I-8x37-80 and I-7188EG/XG : max. 2 Modbus RTU Slave ports |
|
| |
W-8xx7, WP-8x47: max. 5 Modbus RTU Slave ports |
|
| |
|
|
| |
Modbus TCP/IP: max. 32 PC/HMI/SCADA connection |
|
| |
I-8x37-80 and I-7188EG : max. 4 Modbus TCP Slave connections |
|
| |
iP-8x47, £gPAC-7186EG: : max. 6 Modbus TCP Slave connections |
|
| |
W-8xx7, WP-8x47 : max. 32 Modbus TCP Slave connections |
|
| |
|
|
| |
 |
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |

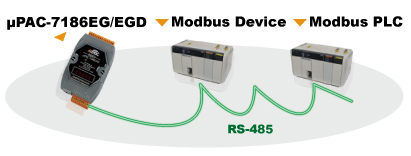

Modbus RTU/ASCII Master Ports |
|
| |
Modbus RTU/ASCII (RS-232/485/422): max. 10 Modbus device connections |
|
| |
iP-8x47, £gPAC-7186EG, I-8xx7, I-8x37-80 and I-7188EG/XG : max. 2 Modbus RTU Master ports |
|
| |
W-8xx7, WP-8x47 : max. 10 Modbus RTU Slave ports |
|
| |
|
|
| |
 |
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |

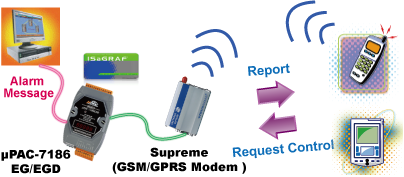

SMS: Short Message Service |
|
| |
The ISaGRAF PACs can integrate with a GSM Modem to support SMS: Short Message Service. This allows user to request information or control something from his own cellular phone to the ISaGRAF PAC. Beside, the PAC can also send information and alarms to user's cellular phone. ( How to use?) |
|
|
| |
|
|
| |
 |
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |

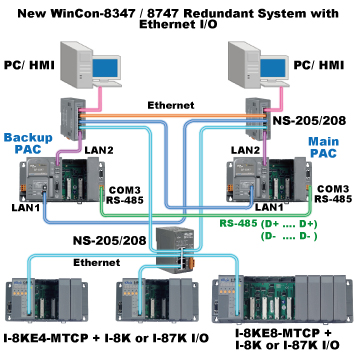

New Redundant System with Ethernet I/O |
|
| |
If one Ethernet cable of W-8347/8747 is broken or damaged, the other one will still work |
|
| |
The scan of Ethernet I/O is much faster than that of RS-485 I-7000 or I-87K I/O. |
|
| |
If one controller is dead, the other one will take over the control of the Ethernet I/O |
|
| |
PC/HMI can connect to this redundant system by one or two active IP. |
|
| |
More at www.icpdas.com> FAQ > Software > ISaGRAF Ver.3 (English) - 093, 042 |
|
| |
|
|
| |
|
|
| |
 |
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |

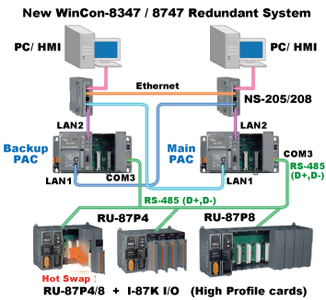

New Hot-Swap and Redundancy System |
|
| |
If one Ethernet cable of W-8347/8747 is broken or damaged, the other one will still work |
|
| |
If one controller is dead, the other one will take over the control of the RS-485 I/O |
|
| |
PC/HMI can connect to this redundant system by one or two active IP. |
|
| |
Hot Swap I/O (only for RU-87P1/2/4/8 with I-87K High profile I/O cards) |
|
| |
More at www.icpdas.com> FAQ > Software > ISaGRAF Ver.3 (English) - 093 |
|
| |
|
|
| |
|
|
| |
 |
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |

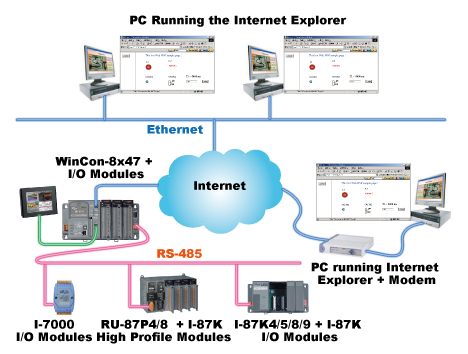

Multiple Web HMI - Monitor & Control Everywhere! |
|
| |
|
|
| |
 |
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |

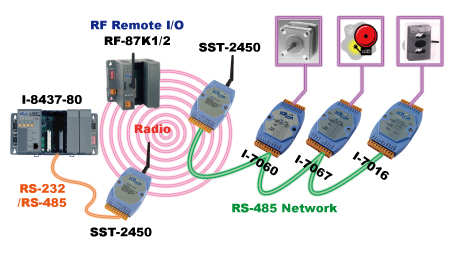

Wireless Communication |
|
| |
|
|
| |
 |
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
Data Recorder and Data Logger |
|
| |
|
|
| |
 |
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
VIP Communication Security |
|
| |
Set VIP (Very Important IP No.) for Modbus TCP/IP security. |
|
| |
|
|
| |
 |
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
|
|
|
| |
| Development
Software |
ISaGRAF-256-E
ISaGRAF-256-C |
ISaGRAF Workbench Software Ver.3 (256 I/O Tags)
with Application Book (E: English book; C: Chinese book) & USB Dongle |
ISaGRAF-32-E
ISaGRAF-32-C |
ISaGRAF Workbench Software Ver.3 (32 I/O Tags) ReadMe
with Application Book (E: English book; C: Chinese book)
Note: ISaGRAF-32 can not upgrade to become ISaGRAF-256 |
| Application
Book |
ISaGRAF Book-E |
ISaGRAF Application Book (English) |
| ISaGRAF Book-C |
ISaGRAF Application Book (Traditional Chinese) |
| Learning Kits |
IKIT-20 |
I-8417 Learning Kit, I-8417 + I-8055 + ISaGRAF-256 |
| IKIT-21 |
I-8437 Learning Kit, I-8437 + I-8055 + I-87017 + ISaGRAF-256 |
|
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
|
|
|
| |
|
|
| |
| iP-8447/8847 |
| The iP-8x47 series is a Dual-LAN ISaGRAF PAC and includes ISaGRAF SoftLogic. |
| |
iPAC-8x47 |
| CPU |
80186, 80 MHz |
| SRAM |
768 KB |
| EEPROM |
16 KB |
| Ethernet port |
10/100 Base-T * 2 |
|
| Note: The iPAC-8x47 series products will be available about Q4, 2008. |
|
| I-8xx7 & I-8x37-80 |
| The I-8x37 series is an Ethernet ISaGRAF PAC and includes ISaGRAF SoftLogic. |
| |
I-8x37-80 |
I-8x37 |
I-8x17 |
| CPU |
80186, 80 MHz |
80188, 40 MHz |
| SRAM |
512 KB |
| EEPROM |
2 KB |
| Ethernet port |
10 Base-T |
None |
Running Speed (Normal PLC scan-time)
I-8x37-80 (2~25 ms) is 2-4 times faster than I-8xx7 (5-100 ms). |
|
| Note: The I-8437/I-8837 has phased out on May 1, 2008. Please select the compatible I-8437-80/I-8837-80. |
|
| WP-8x47 |
The WinPAC-8x47 series is a Dual-LAN ISaGRAF PAC and includes ISaGRAF SoftLogic. |
| |
WP-8x47 |
| CPU |
PXA270 CPU, 520 MHz |
| SRAM |
128 MB |
| EEPROM |
16 KB |
| Ethernet port |
10/100 Base-TX * 2 |
|
| £gPAC-7186EG |
| The £gPAC-7186EG, I-7188EG, I-7188XG series is a palm-size ISaGRAF PAC and includes ISaGRAF SoftLogic. |
| |
£gPAC-7186EG |
I-7188EG |
I-7188XG |
| CPU |
80186, 80 MHz |
80188, 40 MHz |
| SRAM |
640 KB |
512 KB |
| EEPROM |
16 KB |
2 KB |
| Ethernet port |
10/100 Base-TX |
10 Base-T |
None |
Running Speed (Normal PLC scan-time)
£gPAC-7186EG (2~25 ms) is 2-4 times faster than I-7188EG/XG (5-100 ms). |
|
|
| I-7188EG |
| I-7188XG |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
|
|
|
| |
| Ethernet Switch |
NS-205 CR |
Unmanaged 5-port Industrial 10/100 Base-T Ethernet Switch (RoHS) |
| NS-208 CR |
Unmanaged 8-port Industrial 10/100 Base-T Ethernet Switch (RoHS) |
| NS-208G CR |
Unmanaged 8-port Industrial 10/100/1000 Base-T Ethernet Switch (RoHS) |
USB to RS-232/422/485
Converter |
I-7560 CR |
USB to RS-232 Converter (RoHS) with CA-USB18 (1.8M Cable) x 1 |
| I-7561 CR |
USB to RS-232/422/485 Converter (RoHS) with CA-USB18 (1.8M Cable) x 1 |
| I-7563 CR |
USB to 1-ch RS-485 Converter with a 3-way RS-485 Hub (RoHS) with CA-USB18 (1.8M Cable) x 1 |
RS-232 to RS-422/485
Converter |
I-7520AR CR |
I-7520A with 3000 VDC Isolation at RS-485 Side (RoHS) |
| Power Supply |
KA-52F
(DIN-KA52F) |
24 V/1 A Output Power Supply
(DIN-KA-52F: KA-52F with DIN-Rail Mount) |
ACE-540A
(DIN-540A) |
24 V/1.7 A Output Power Supply
(DIN-540A: ACE-540A with DIN-Rail Mount) |
| DP-665 |
24 V/2.5 A, 5 V/0.5 A Power Supply |
| DP-660 |
24 V/2.5 A , 5 V/0.5A Dual Output Power Supply |
| DP-1200 CR |
24 V/5 A Power Supply |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
