Main Control Unit

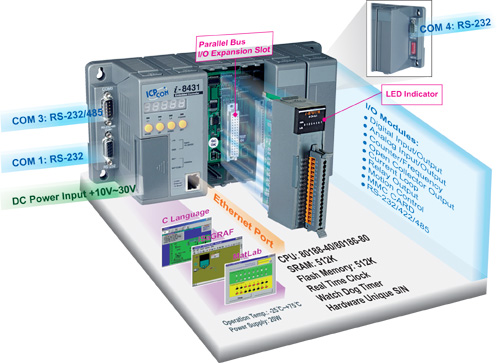

The compact PAC all have same shap, same system architecture. With different software or communication interface, they can be classfied to several solutions as following

Will be available

Available soon

8000 Series Programmable Automation Controller

Type

Model

Description

8000 Series C language based PAC
(Selection Guide)

I-8411

I-8811

8000 Series C language based PAC(Programmable Automation controller)

8000 Series ISaGRAF
based PAC
(Selection Guide)

I-8417

I-8817

The controller fully supports all five of the IEC61131-3 standard PLC languages.
It supports Modbus protocol and can link to distributed I/O modules with Modbus or DCON protocol via the RS-232/485 or Ethernet.

~~I-8437~~

~~I-8837~~

8000 Series Matlab
based PAC
(Selection Guide)

I-8438-G

I-8838-G

Matlab based PAC (Programmable Automation Controller)

Note: The I-8437/ I-8837 has phased out on May 1, 2008. Please select the compatible I-8437-80 / I-8837-80.

back

Will be available

Available soon

8000 Series I/O Unit

Type

Model

Description

Slave I/O unit with
DCON protocol
(Selection Guide)

I-8410

I-8810

I/O Unit with an ASCII based protocol (DCON protocol). PC HMI or PLC can communicate with the unit via the RS-232/485 or Etherfnet inter face.

Programmable slave I/O unit with Modbus protocol
(Selection Guide)

I-8431-MTCP

I-8831-MTCP

I/O unit with Modbus/TCP and Modbus/RTU protocol. PC. HMI or PLC can communicate with it via the RS-232/485 or Ethernet, It is also a programmable controller.

Slave I/O unit
with DeviceNet or
CANopen protocol
(Selection Guide)

CAN-8124

CAN-8123

I/O unit with DeviceNet or CANopen protocol.

CAN-8224

CAN-8223

CAN-8424

CAN-8423
