Built-in COM-Selector |
|
| |
|
Universal PCI (3.3 V and 5 V) |
|
| |
|
Programmable Firmware |
|
| |
|
MiniOS7 Inside |
|
| |
|
Up to 128 KB software FIFO |
|
| |
|
Self-tuner Inside |
|
| |
|
Surge Protection & Isolation |
|
| |
|
Short Card Design |
|
| |
|
Various Accessories¡@ |
|
| |
|
|
| |
|
|
| |
|
|
| |

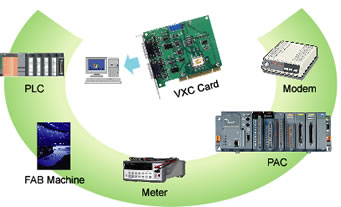

| The VXC multiport serial card enables user to install additional communication ports on the PC. It¡¦s the best choice for time-critical and reliably communications and controls on the industrial environment. For example: Communicates to PLC, FAB machine, meter, console management of devices, laboratory instruments and Modem link, etc. |
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| COM-Selector |
The VXC series cards equip a COM-Selector (dip switch) for the COM port number selection (automatically or manually). It's an important and innovative feature of the VXC cards. It has the following advantages:
- Simplifies the COM port number selection without using configuration utility programs.
- Users specify the COM port number exactly what they want, no matter which PCI slot is using.
- Automatically select an available COM port number is supported by setting the COM-Selector (dip switch) to
0 (default).
- Needn¡¦t to install configuration utility for different OS, and needn¡¦t to study operations of the utility.
- Prevents confusion. Other PnP COM port devices always confusing users by using a dynamic COM port
number.
- Replacing an existing card is very easy, just setting the dip switch to the same.
- It's great for mass system installation, just setting the dip switch to use the same COM port number
in systems. |
|
| Up To 128 KB Software FIFO |
| The VXC card driver for Windows features a maximums 128 KB software FIFO for each port (default is 4 KB). It's practical for large file transmission. |
|
| Self-Tuner |
| The RS-485 ports of VXC cards equip a "Self-Tuner" chip, which controls the sending/receiving direction, baud rate and data format automatically and reduces the software loading for such controls. |
|
| Programmable |
| The VXC-114H card is an intelligent and programmable communication board. Users can develop their own powerful and customized firmware with MiniOS7 SDK very easy. This is useful for encryption/decryption, data filter, logger, compression, protocol converter and re-director applications etc. |
|
| Surge Protection & Isolation |
| In the harsh industrial environment, the on board surge protection can protect the computer and equipment from being damaged by high potential voltage. |
|
| Short Card Design |
| The "Short Card" design is suitable for compact-size computer, especially for IPC and servers. |
|
| Universal PCI (3.3 V and 5 V) |
| The Universal PCI card works with 3.3 V new PCI-X bus and 5 V PCI bus. The new design of ICPDAS products will equip the Universal PCI feature soon. |
|
| Various Accessories |
| There are a lot of optional accessories for the VXC cards, such as RS-232/RJ-45 cables and daughter boards. These make wiring easily. |
|
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
|
 |
Will be available |
 |
Available soon |
 |
Phased out |
 |
Will be phased out |
|
 |
|
|
| |
Model |
Description |
|
PCI Bus, 2-port RS-422/485 Communication Board |
|
PCI Bus, 2-port Isolated RS-422/485 Communication Board |
|
PCI Bus, 1-port Isolated RS-422/485 and 1-port RS-232 Communication Board |
|
PCI Bus, 2 Port RS-232 communication board |
|
Universal PCI, 4-port RS-232 Communication Board |
|
Universal PCI, 4-port RS-422/485 Communication Board |
|
Universal PCI, 4-port RS-422/485 Communication Board |
|
|
|
|
| |
