Model: PISO-PS300 |
Model: PISO-PS300U |
|
|

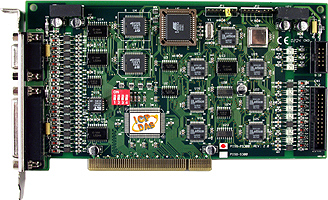

PISO-PS300
PISO-PS300U
PCI Bus, 3-axis Stepper Motor/Servo Control Card
(Function Limited and Low Cost) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The
PISO-PS300(U) is a 3-axis Pulse command type, Servo motor control board.
The embedded CPU of PISO-PS300(U) performs the motion command transferred
from host-PC via a 2 KB FIFO. It also sends the position and status
to host-PC via another 2 KB FIFO. This buffer provides time buffer
and it is very suitable for windows operating system. This board
provides DOS, Windows 98, Windows NT and Window XP drivers. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- PCI Bus
PISO-PS300: 5 V PCI
PISO-PS300U: Universal PCI
- 3-axis
Pulse-command Servo Motor Board
- Embedded CPU
- Max. Pulse Rate : 1 MHz
- 3-Axis Linear
Interpolation, Circular Interpolation
- Programmable Trapezidal
Speed Profile
- Programmable DDA Cycle
- Hardware Emergency Stop
- DOS, Windows 95, Windows
NT Driver
- 8 Digital Input, 7 Digital
Output
- Dimensions: 208 mm X 121 mm
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- Toolkit for DOS
- Toolkit for Windows 95/98
- Toolkit for Windows NT
- Toolkit for Windows 2000/XP
- Toolkit for LabVIEW95/98
- Toolkit for LabVIEW NT/XP
- Toolkit for
LabVIEW 2000/XP
- Driver for LINUX
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PISO-PS300 |
5 V PCI Bus, 3-axis Stepper Motor/Servo Control Card (Function Limited and Low Cost)
Include :
CA-9-2502 (9-pin Male & 25-pin Female D-sub Cable 0.2 M)
CA-PC09F (9-pin Female D-sub Connector with Plastic Cover)
CA-PC09M (9-pin Male D-sub Connector with Plastic Cover)
CA-PC25M (25-pin Male D-sub Connector with Plastic Cover) |
PISO-PS300U CR |
Universal PCI Bus, 3-axis Stepper Motor/Servo Control Card (Function Limited and Low Cost, RoHS)
Include :
CA-9-2502 (9-pin Male & 25-pin Female D-sub Cable 0.2 M)
CA-PC09F (9-pin Female D-sub Connector with Plastic Cover)
CA-PC09M (9-pin Male D-sub Connector with Plastic Cover)
CA-PC25M (25-pin Male D-sub Connector with Plastic Cover) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DB-8R |
Relay Board for SERVO-300 and PISO-PS300(U) |
|
|
|
|
|
|
|
|
|
|
