	Release two useful ISaGRAF application samples: “Auto Time-Synchronization system” and “Auto sending the email with one attached I/O-Acquisition-File system”

	1. How to do Time Synchronization and monitor state of many ISaGRAF PAC ?

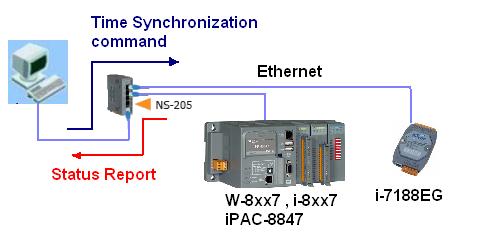

	Please visit http://www.icpdas.com/faq/isagraf.htm FAQ-070 for more information. This sample uses one PC to receive UDP report data from many ISAGRAF PAC, and then the PC can send time synchronization command to the ISAGRAF PAC if it is necessary. This sample demo one PC to link to two ISaGRAF PAC (can be any of W-8xx7, I-8x37, iPAC-8447 / 8847 or I-7188EG) in a local Ethernet area.

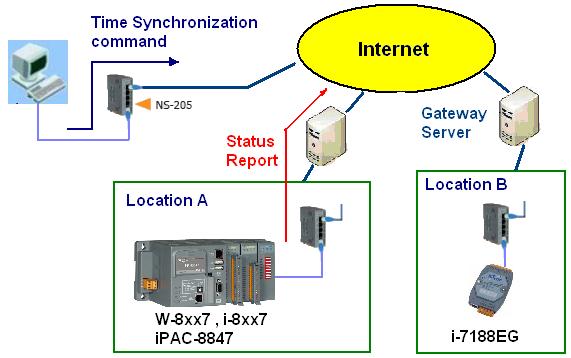

	If this sample is applied in the Internet , then the PC must set to a fixed Internet IP address. And also each ISaGRAF PAC in the different local area should be possible to connect to the Internet (Normally is through the Gateway Server of the ISP company) .



	2. Record 10-Ch. temperature value into a file in W-8xx7 every minute. When 24 hour recording is finished, send this record file by email every day.

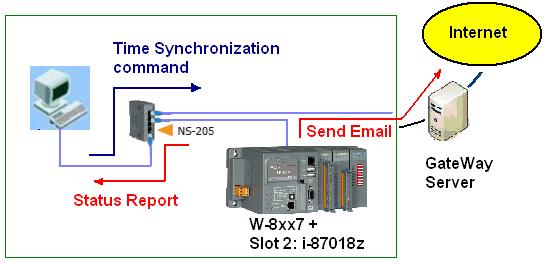

	Please visit http://www.icpdas.com/faq/isagraf.htm FAQ-071 for more information. This sample uses one Wincon-8xx7 + slot 2: I-87018z to record 10-Ch. Temperature value every minute. Then send an email with the attached record file after the 24-hour recording is finished. The email is sent at around 00:00 to 00:01 every day. This sample can apply one PC to monitor the communication state of each ISaGRAF PAC in different place and do time synchronization also. (Or just receive email, then this PC / Server is not necessary) The PC can reside at the same local ethernet area as the W-8xx7 controller.

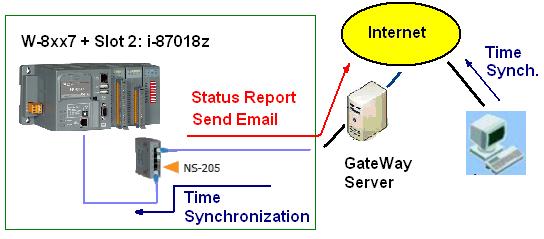

	Or reside at the Internet.
